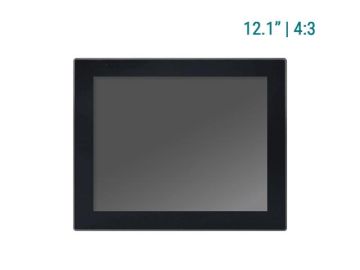

Arbor SP-120R-1J64
12.1’’ Panel PC (4:3) (Barebone)
w/ Intel Celeron J6412
w/ 5-Wire Resistive Touch, DC 12~36V, COM*2, USB*4, LAN*2, HDMI,
Dimension: 307x241.6x60 mm
Dostupnost:
Raspoloživo
SKU
7412000200000P
| SKU | 7412000200000P |
|---|---|
| Proizvođač | Arbor |
| Serija | Arbor Panel PC |
| Rok Isporuke | 45 dana |
| Garancija | 12 Meseci |
System
| CPU | Intel® Elkhart Lake Celeron® J6412 processor (2.00 GHz/2.6GHz) |
|---|---|
| Memory | 1 x DDR4 2133/2400/3200hz SO-DIMM slot, up to 32GB 4GB DDR4 SO-DIMM pre-installed*(CTOS) |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| LAN Chipset | 2 x Intel® I226-V 2.5GbE controllers |
| Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
Storage
| Device | 1 x M.2 2242 SSD slot 128GB M.2 SSD pre-installed*(CTOS) |
|---|
Audio
| Type | 1 x Audio(Line-out & Mic-in 2 in 1) |
|---|---|
| Speaker | 2 x 1.5W speakers (optional) Realtek® ALC888S HD Audio codec 4Ω3W speakerx2 |
LCD Display
| Size / Type | 12.1" TFT LCD Panel |
|---|---|
| Max. Resolution | 1024 x 768 |
| Ratio | 4:3 |
| Luminance | 450 cd/m² |
| Contrast Ratio | 700:1 |
| Backlight | LCD Backlight |
| Backlight Lifetime | 50000 Hrs |
| Touch Screen | Industrial-grade true-flat 5-wire resistive touch screen |
| Touch | 35,000,000 times |
| View Angle (U/D/R/L) | 80°/80°/80°/80° |
Power System
| Power Input | DC 12~36V 1 x Power Connector (2P Phoenix) |
|---|
Qualification
| Certification | CE, FCC |
|---|
External I/O
| Expansion Bus (for Wireless Connection) | 1 x Mini PCIe slot (PCIe x1+ USB2.0, Full size) w/ 1 x SIM card slot |
|---|---|
| Serial Ports | 1 x RS232/RS422/RS485(COM1) 1 x RS232(default)/RS485(Jumper) |
| USB Ports | 2 x USB2.0, 2 x USB3.1 |
| LAN | 2 x RJ45 |
| Video Ports | 1 x HDMI (up to 4096x2160@60hz) |
| Remote On-Off | 1 x Remote ON-OFF |
Internal I/O
| Expansion | 1 x Mini-PCIe slot (PCIe/ USB2.0 signal supported) 1 x M.2 2230 slot (PCIe/ USB2.0 signal supported) 1 x M.2 2242 slot(SATA signal supported) 1 x SIM socket for 3G/4G 1 x 8bit GPIO 3.3V(jumper)/5V(default) power 2 x RS232 2 x USB2.0-For Touch 1 x SATA3.0/Power 5V for HDD |
|---|
Mechanical
| Mounting Type | Panel Mount, Wall and VESA-mount (75 x 75mm) |
|---|---|
| Chassis | Aluminum for front Panel and heat-sink, SECC for Rear Cover |
| Dimensions (W x H x D) | 307(W) x 241.6(H) x 60(D)mm |
| Cut out | 299 x 233.6mm |
| Weight (Net) | 2.9 kg |
Environmental
| Operating Temp. | -10 ~ 60°C |
|---|---|
| Storage Temp. | -40 ~ 70°C |
| Operating Humidity | 5 ~ 95% (non-condensing) |
| Random Vibration | 5~500Hz, 2Grms operation |
| Sine Vibration | 5~500Hz, 2G Non-operation |
| Shock | 10g 11ms operation, 30g 11ms Non-operation |
Ordering Information
| SP-120R-1J64 | Barebone 12.1" (4:3) Panel PC with Intel Celeron Elkhart Lake J6412, R-touch, HDMI*1, USB*4, LAN*2, COM*2, DC12- 36V power input |
|---|---|
| SP-120R-1J64-R4S128 | 12.1" (4:3) Panel PC with 4GB RAM & 128GB SSD, Intel Celeron Elkhart Lake J6412, R-touch, HDMI*1, USB*4, LAN*2, COM*2, DC12-36V power input |
| PAC-60W-FSP-SPA R1.0 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ USA POWER CORD |
| PAC-60W-FSP-SPA R1.1 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ EU POWER CORD |
| PAC-60W-FSP-SPA R1.2 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ UK POWER CORD |
| PAC-60W-FSP-SPA R1.3 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ IN POWER CORD |
