Bixolon XL5-40CT
Izuzetno pouzdan XL5-40 nudi neuporedivu performansu linerless etiketiranja uz svestrane anti-zagušenje funkcije. Više linerless etiketa sertifikovano od strane BIXOLON-a i BIXOLON-ovog sopstvenog snabdevanja, B-linerless™ će optimizovati dosledne operacije smanjujući troškove odlaganja otpada, osoblja, skladištenja i transporta. XL5-40 pruža najbrže brzine štampanja na svetu do 6ips (152mm/sec) sa manje potrebnim održavanjem dizajna.
| SKU | bixxl540 |
|---|---|
| Proizvođač | Bixolon |
 |
 |
 |

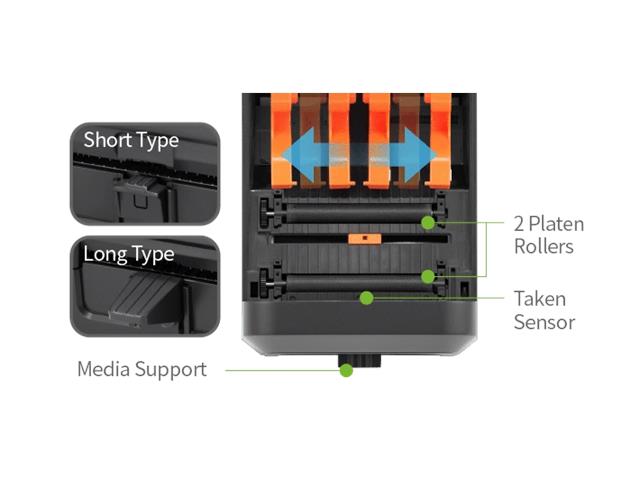

Extreme Reliability– Anti-jamming, anti-curling and two long-lasting platen rollers equipped |

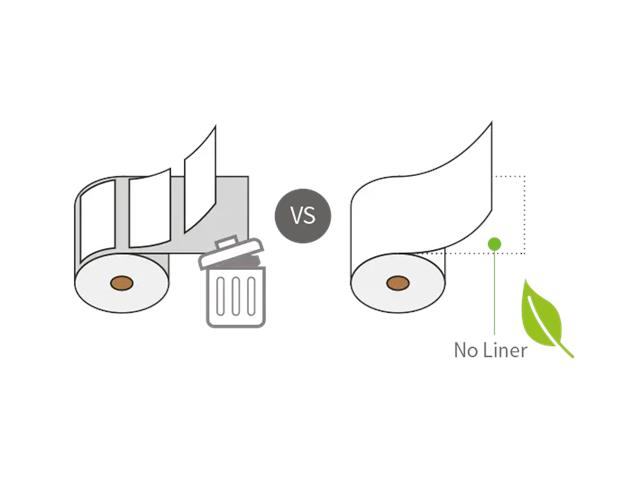

Green Solutions– Up to 40% more label length available on a linerless paper per roll compared to linered media |

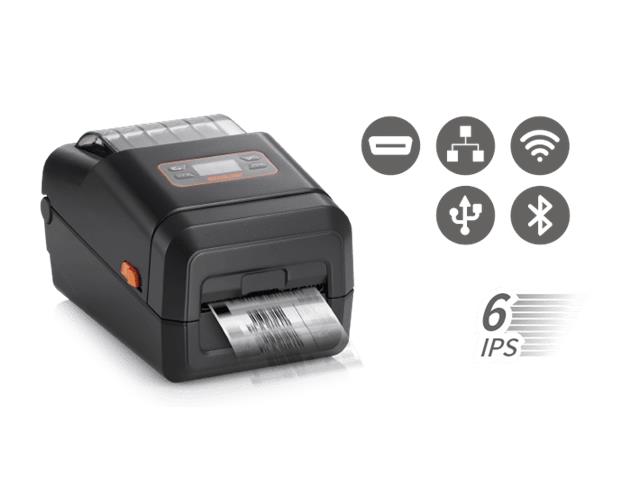

Functional Operations– Fast linerless printing speed up to 6ips (152mm/sec). |
| Print Characteristics | |
| Print Method | Direct Thermal |
| Print Speed | "XL5-40: Up to 6 ips (152 mm/sec)XL5-43: Up to 5 ips (127 mm/sec) " |
| Print Resolution | "XL5-40: 203dpiXL5-43: 300dpi" |
| Print Width | "XL5-40: Up to 108 mmXL5-43: Up to 105.7 mm" |
| Print Length | 30 ~ 1,000 mm |
| Sensor | Gap(Fixed) / Black mark(Adjustable), Head Open, Paper Taken Sensor |
| Media Characteristics | |
| Media Type | "Linerless : Continuous, Black MarkLinered : Gap, Black Mark, Fan-Fold" |
| Media Width | 20 ~ 114mm |
| Media Roll Diameter | Up to 127mm |
| Media Thickness | 0.09 ~ 0.20mm |
| Supply Method | |
| Inner Core | 38.1 mm (1.5 inch) - Recommended, 25.4 mm (1 inch) |
| Ribbon Characteristics | |
| Ribbon Type | |
| Ribbon Width | |
| Ribbon Length | |
| Core Inner Diameter | |
| Physical Characteristics | |
| Dimensions (WxDxH) | "186 x 287.7 x 173 mm(7.32 x 11.33 x 6.81)" |
| Weight | 2.8kg(6.17lb.) |
| Electrical | "EnergyStar Certified, External Power Adaptor 100-240V AC, 50/60Hz" |
| Display | "Standard: NoneOptional: FSTN LCD (200 x 100 pixels)" |
| Camera | |
| Performance Characteristics | |
| Memory | "Standard: 64 MB SDRAM, 128 MB FlashOptional: ① 64 MB SDRAM, 128 MB Flash ② 256 MB SDRAM, 256 MB Flash" |
| Interface | "Standard: USB +USB HostOptional: ① USB+USB Host+WLAN ② USB+USB Host+Bluetooth ③ USB+USB Host+Serial+Ethernet ④ USB+USB Host+Serial+Ethernet+WLAN ⑤ USB+USB Host+Serial+Ethernet+Bluetooth------------------------------------------------------------------WLAN: Built-in type, 802.11a/b/g/n (2.4G and 5G)Bluetooth: Built-in type, V4.2 Classic / LE, Class 1, MFi certifiedEthernet: 10/100Mbps" |
| Real Time Clock | Supported(Option) |
| Environment Characteristics | |
| Temperature | "Operating: 0 ~ 40℃ (32 ~ 104℉)Storage: -20 ~ 60℃ (-4 ~ 140℉)" |
| Humidity | "Operating: 10 ~ 80% RHStorage 10 ~ 90% RH" |
| Reliability | |
| Thermal Print Head (TPH) | 12 months or 25 Km (whichever comes first) |
| Auto Cutter | 12 months or 300,000 cut (whichever comes first) |
| Platen Roller | 12 months or max 25km (whichever comes first) |
| Software | |
| Emulation | SLCS™, BPL-Z™ (ZPLII), BPL-E™ (EPL) |
| Driver/Utility | "Windows Driver (Europlus/Seagull)Linux/Mac CUPS DriverVirtual COM USB/Ethernet DriverUtility ProgramOPOS/JPOS DriverBartender Ultralite for BIXOLONLabel Artist-II™SAP® Device Driver" |
| SDK/Plugin | "Android/iOS/Windows SDK Linux SDKChrome SDKXamarin SDK" |
| Application | "Label Artist™Mobile (Android,iOS)mPrint App (iOS)mPrint Server (Windows, iOS)" |
| MDM(Optional) | BIXOLON Profile Manager - XPM™, XCM™ (Windows, Android) |
| Fonts/Graphics/Symbologies | |
| Fonts | "Bitmap Fonts (SLCS™ , BPL-Z, BPL-E) / Scalable Fonts (SLCS™, BPL-Z) / Unicode supported (UTF-8, UTF-16LE, UTF-16BE)" |
| Graphics | Supporting user-defined fonts, graphics, formats and logos |
| Barcode Symbologies | "1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39 " |
| Accessories | |
| Standard | USB cable |
| Optional | Serial cable |
| Supplies |
