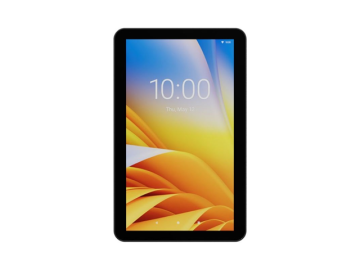

Zebra KC50
Zebra KC50 Android Kiosk računar je centralni deo Zebra Kiosk sistema; sveobuhvatno i modularno kiosk rešenje napravljeno za različite aplikacije samousluživanja, asistirane naplate i digitalnih reklama. KC50 je dizajniran sa obzirom na potrebe i potrošača i preduzeća, uključujući elegantan i moderan estetski izgled u kombinaciji sa snažnom i proverenom Zebra preduzetničkom Android platformom.
KC50 se odlikuje dizajnom koji privlači pažnju i intuitivnim, korisnički prijateljskim interfejsom koji poziva kupce na interakciju. Čak možete dodati konverzacijskog digitalnog asistenta putem Zebra platforme API-ja za kupce koji preferiraju razgovor sa osobom umesto traženja pomoći unutar aplikacije. Modularne i fleksibilne konfiguracije omogućavaju vam da izaberete željenu veličinu ekrana, orijentaciju, dodatnu opremu i opcije montiranja. Sa Z-Flex Connector perifernim uređajima i modularnim postoljima, možete kreirati stotine jedinstvenih kombinacija kioska koje zadovoljavaju specifične potrebe vašeg poslovanja.
Raspoloživo
SKU
zebkc50
| SKU | zebkc50 |
|---|---|
| Proizvođač | Zebra |
Specifications
Physical Characteristics

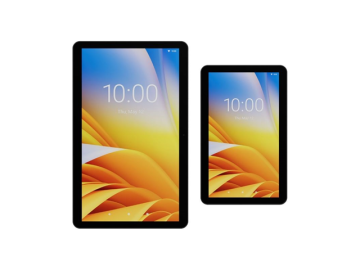

| Dimensions | 15 in: 15.17 in L x 9.43 in W x 1.51 in H 15 in: (385.2mm L x 239.4mm W x 38.3mm H) 22 in: 20.35 in L x 12.56 in W x 1.70 in H 22 in: (516.8mm L x 319.0mm W x 43.3mm H) |
| Weight | 15 in: 5.7 lbs (2.6kg) 22 in: 11.6 lbs (5.3kg) |
| Display | 22 in: 21.5 in. Full High Definition; 1080 x 1920; LED backlight; 300 NITS; optically bonded to touch panel 15 in: 15.6 in. Full High Definition; 1080 x 1920; LED backlight; 300 NITS; optically bonded to touch panel |
| Touch Panel | 2.0mm thick Alkali-Aluminosilicate chemically strengthened cover glass; fingerprint resistant anti-smudge coating; multi-mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately) |
| Expansion | MicroSD card supports up to 2 TB |
| Connectivity | USB-C with DP ALT Mode for secondary display |
| Network Connections | WLAN (Wireless Local Area Networks) 10/100/1000 Ethernet via RJ45 connector |
| Notifications | Audible tone; haptic feedback; optional Z-Flex multi-color LED bar accessory, Power LED |
| Keypad | On-screen keypad and enterprise keyboard |
| Audio | Two microphones with noise cancellation; Dual 1W speakers |
| Buttons | Power and volume up/down buttons |
| Interface Ports | Ethernet RJ45; USB Type A 3.0 Superspeed Host Port; GPIO connector for future expansion with USB 2.0 Host Port |
| Scanner Support | Support for external USB and Bluetooth Scanners |
| Mounting and Stands | VESA 100 or VESA 75 mounting Optional accessories: TD50 15-inch secondary display; Z-Flex SE4720 decoded scanner; Z-Flex Multi-Color LED light bar; desktop/floor/countertop stand accessories with support for printer box, height risers |
Performance Characteristics
| CPU | Qualcomm® 5430 Octa Core chipset 2.1 GHz |
| Operating System | Upgradeable to Android 16 |
| Memory | Up to 8 GB RAM/128 GB UFS Flash |
User Environment
| Operating Temp. | +32F to +104F (0C to +40C) |
| Storage Temp. | -40F to +158F (-40C to +70C) |
| Humidity | 5% to 95% non-condensing |
| Sealing | IP65 per IEC 60529 |
| Vibration | Sine: 4 g’s PK(5 Hz to 2 kHz) Random: 6 g RMS (20 Hz to 2 kHz) 60 minute duration per axis, 3 axis |
| Electrostatic Discharge (ESD) |
+/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge |
| Power | 24 VDC Zebra PSU: PWR-BGA24V78W4WW Power profiles: includes predefined or customized configurations for main display brightness, external display connection, speaker, Wi-Fi, Bluetooth, USB and GPIO connectors to meet different power allocations Power over Ethernet: 30W to 90W PSE; IEEE 802.3at/bt; capable of receiving a maximum power of 71 watts from a compliant PoE power supply (support for Class 4 through 8) |
Sensors
| Motion Sensor | 3-axis gyroscope; 3-axis accelerometer |
Data Capture
| Scanning |
Optional SE4720 1D/2D decoded imager Z-Flex Accessory |
| Front Camera | 5 MP |
Wireless LAN
| Radio |
IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2x2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz); Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6 |
| Data Rates | 2.4 GHz: 802.11b/g/n/ax — 20 MHz — up to 286.8 Mbps; 5 GHz: 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps; 6 GHz: 802.11ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps |
| Operating Channels | Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233: (5925-7125 MHz) Channel Bandwidth: 20, 40, 80, 160 MHz Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency. |
| Security and Encryption | WPA3 Enterprise 192-bit mode, GCMP256 — EAP-TLS; WPA3 Enterprise, AES-CCMP-128 — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Personal (SAE), AES-CCMP-128; WPA/WPA2 Enterprise, TKIP and AES-CCMP-128; WPA/WPA2 Personal (PSK), TKIP and AES-CCMP-128; Enhanced Open (OWE), AES-CCMP-128; WEP 40 bit and 104 bit |
| Certifications | Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Enhanced Open; WMM (Wi-Fi Multimedia); WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint |
| Fast Roam | 802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC |
Wireless PAN
| Bluetooth | Class 2, Bluetooth v5.3 with Bluetooth Low Energy (BLE) |
| NFC | Center of Display front facing; ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards; Card Emulation via Host; Contactless payment support, ECP1.0 and ECP2.0 polling support, NFC Forum Compliant, Google Smart Tap certified, Apple VAS ready |
Peripherals and Accessories
| Optional Accessories: TD50 15-inch secondary display; Z-Flex SE4720 decoded scanner; Z-Flex Multi-Color LED light bar; desktop/floor/countertop stand accessories with support for printer box, height risers |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the KC50 is warranted against defects in workmanship and materials for a period of one (1) year from the date of shipment. For complete warranty statement, please visit www.zebra.com/warranty |
Recommended Services
| Eliminate unexpected repair costs with Zebra OneCare™ Essential or Select Maintenance Plans to ensure there’s no disruption in your workflows. When it comes to device visibility, we help you make informed decisions with detailed analytics from VisibilityIQ™ Foresight that help identify possible issues before they cause significant problems, ensuring devices are used to their fullest potential. Zebra’s Professional Services team can help stage devices with custom images and specific applications prior to deployment. For more information on Zebra services, please visit www.zebra.com/services |
Zebra DNA
|
Zebra DNA solutions help you get more value out of your Zebra Android devices by adding functionality as well as simplifying deployment and management. For more information on these Zebra-only features, please visit Zebra DNA is available on Android only. Features may vary by model and a Support Contract may be required. To learn what solutions are supported, please visit: |
Povezani proizvodi
-

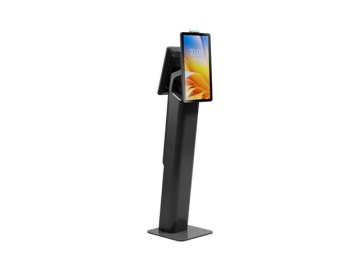

Zebra Kiosk Stand, Floorstand, Customer DisplayKiosk Stand, Floorstand, Customer Display, Back-To-Back Monitor, height of stand positions center of display: 1047mm, 1013mm (customer display), fits for: KC50200.463,36rsd 167.052,80rsd -
Zebra Kiosk Stand, CountertopKiosk Stand, Countertop, single-screen solution, height of stand positions center of display: 410mm, fits for: KC5081.594,35rsd 67.995,29rsdNema na stanju -

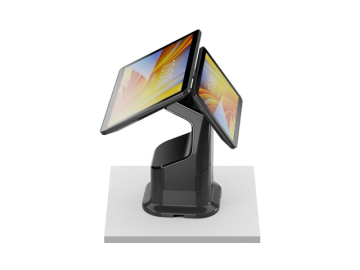

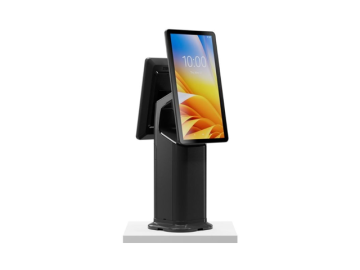

Zebra Kiosk Stand, Countertop, Customer DisplayKiosk Stand, Countertop, Back-To-Back Monitor, height of stand positions center of display: 410mm, 352mm (customer display), fits for: KC5079.032,52rsd 65.860,43rsd -

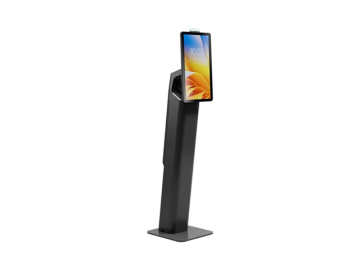

Zebra Kiosk Stand, FloorstandKiosk Stand, Floorstand, single-screen solution, height of stand positions center of display: 1047mm, fits for: KC50197.901,53rsd 164.917,94rsdNema na stanju -
