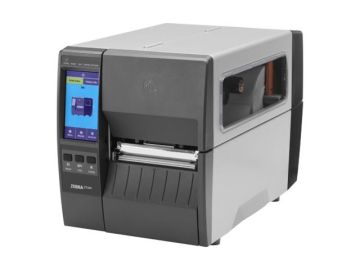

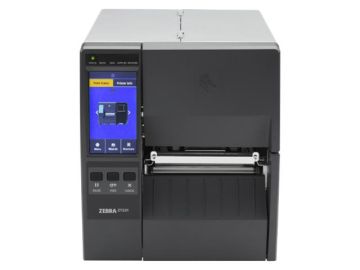

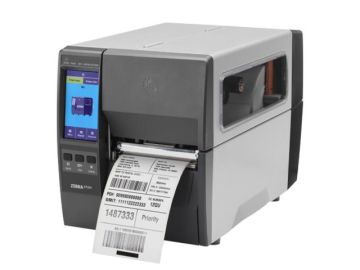

Dizajniran da zameni ZT230 industrijske štampače, Zebra ZT231 termalni transfer industrijski štampač nudi izvanredne funkcionalnosti po izuzetnoj ceni. Sa širokim spektrom karakteristika, ZT231 pruža pouzdanu performansu i kvalitet štampe preko različitih aplikacija, uključujući zdravstvo, transport, logistiku, maloprodaju i proizvodnju. ZT231 podržava mrežnu povezanost "iz kutije" i pojednostavljenu PrintTouch tap-to-pair konfiguraciju štampača sa kompatibilnim mobilnim uređajem. Opremljen standardnim USB-host portom, ovaj štampač omogućava upotrebu USB ulaznih uređaja poput tastatura, podržava ažuriranje firmvera i učitavanje datoteka preko povezanih USB-storage uređaja. ZT231 dolazi standardno sa lako upotrebljivim 4,3-inčnim ekranom u boji osetljivim na dodir sa intuitivnim menijem za brzu operaciju i podešavanja.
| SKU | zebzt231 |
|---|---|
| Proizvođač | Zebra |
| Klasa štampača | nalepnica |
| Tip štampača | industrial |
Standard Features
|
• Print methods: direct-thermal or thermal-transfer |
Physical Characteristics
| Dimensions* |
ZT231 Closed: 17 in. L x 9.5 in. W x 11 in. H |
| Weight |
ZT231: 20 lbs./9.1 kg |
|
*Dimensions are for the base model printer. Consult your salesrepresentative for specifics regarding other configurations. |
Printer Specifications
| Resolution |
203 dpi/8 dots per mm |
| Memory |
256 MB SDRAM memory |
| Maximum Print Width | 4.09 in./104 mm |
| Maximum Print Speed |
12 ips (203 dpi) |
| Media Sensors | Moveable transmissive and reflective sensors |
| Maximum Print Length |
203 dpi: 157 in/3988 mm |
Media Characteristics
| Minimum Label and Liner Length |
Tear mode: 0.7 in/18 mm |
| Media Width | 0.75 in./19.4 mm to 4.50 in./114 mm |
| Media Roll Size |
8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core |
| Media Thickness | 0.003 in./0.076 mm to 0.010 in./0.25 mm |
| Media Types | Continuous, die-cut, notch, black mark |
Ribbon Characteristics (Thermal-transfer option only)
| Standard Length | 1,476 ft./450 m |
| Width | 2 in./51 mm to 4.33 in./110 mm |
| Core | 1.0 in./25.4 mm |
Operating Characteristics
| Operating Temp. |
Thermal transfer: 40ºF to 105ºF/5º to 40ºC |
| Storage/Transportation Temperature |
-40ºF to 140ºF/-40º to 60ºC |
| Operating Humidity | 20% to 85% non-condensing |
| Storage Humidity | 5% to 85% non-condensing |
| Electrical |
Universal auto-ranging (PFC-compliant) |
| Agency Approvals | IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S- Mark, CCC, CU EAC, BSMI, KCC, and BIS |
Print DNA Software
|
This printer is supported by our Print DNA suite of software capabilities to get your printer up and running quickly and securely, and enable your printer to evolve with your business needs. Print DNA features may vary by model, and some features may require a license. |
Firmware
|
ZBI 2.0™ — Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more. |
Barcode Symbologies
|
Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with |
Fonts and Graphics
|
Z7 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed) Pre-loaded Unicode™-compliant scalable fonts for EMEA character sets International character sets supporting the following code page: IBM® Code Page 850 |
Options and Accessories
|
Communication |
Managed Print Services (MPS) Made Simple
| Our printers offer innovative remote management, analytics and security capabilities that make them the obvious choice for MPS. With the Print DNA software suite, your Zebra MPS provider can remotely manage and optimize your printers, track and automate supplies replenishment and ensure security. For more information, please visit www.zebra.com/managed-print-services |
| Opšti uslovi prodaje | |||||
|---|---|---|---|---|---|
| Kupovinom ovog proizvoda dobijate samo proizvod onako kako je naznačeno u ponudi-profakturi | |||||
| Dodatna podešavanja proizvoda po secifičnim potrebma nisu uključena u cenu osim ako to nije navedeno u ponudi. | |||||
| Integracija u postoljeće sisteme nije uključena u cenu proizvoda osim ako to nije navedeno u ponudi | |||||
| Garantni rok za sve uređaje je 12 meseci ukoliko nije navedeno drugačije. |
